SL-09047 24W LED Work Light with Integral Deutsch Connector
Compact 76 x 76mm square body design
Multi-voltage: 9-32Vdc operating range
24 x 1W Osram LEDs
Clear lens
1920 lumens measured output

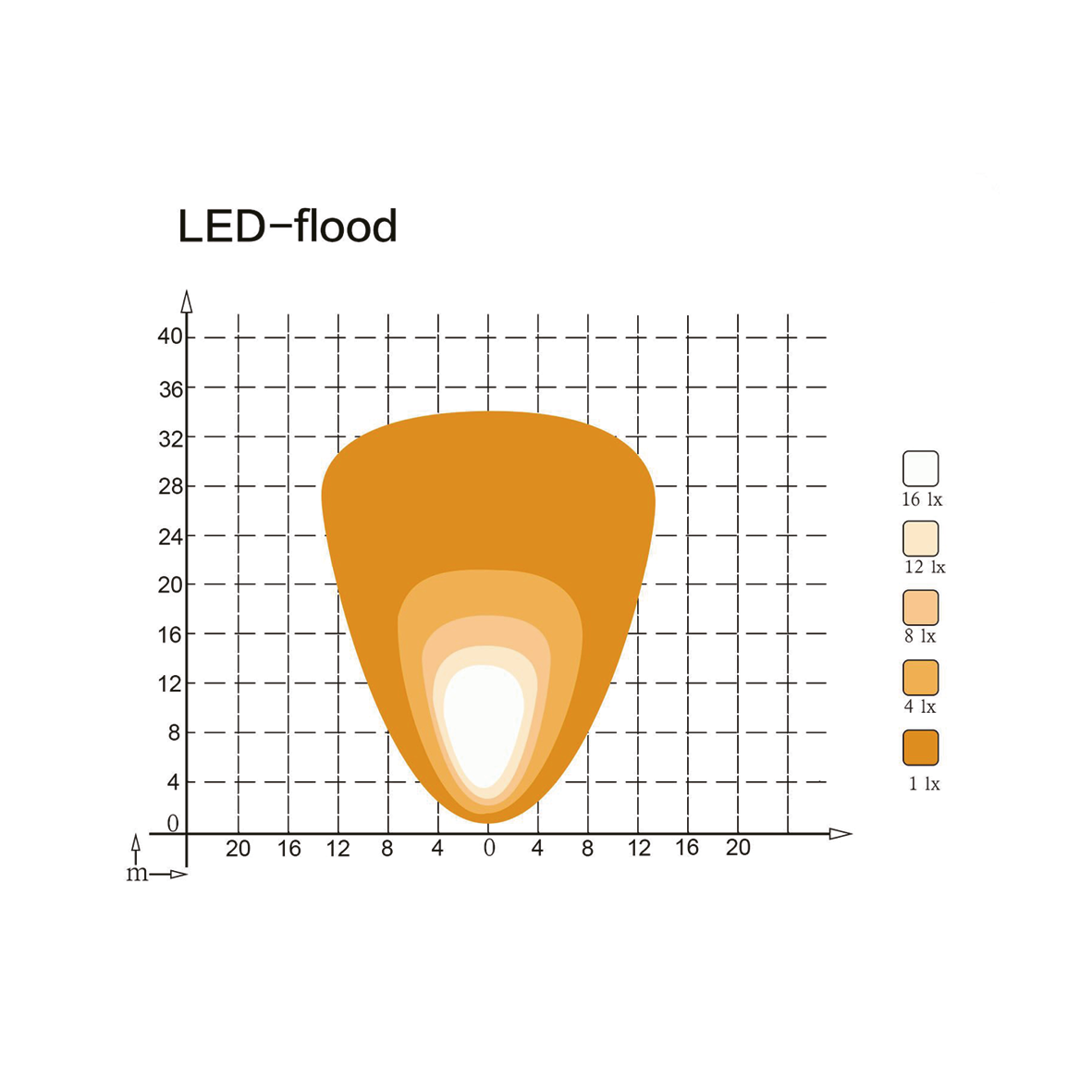

Flood light pattern
Fully angle-adjustable bracket mounting
IP68 rated
Certified to ECE R10
Polycarbonate lens
Aluminium housing, black E-coat finish
SL-09047-1 is supplied with mating DT plug and cable
SL-09047-2 is for mating with customer’s own DT plug terminated harness
Compact 76 x 76mm square body design
Multi-voltage: 9-32Vdc operating range
24 x 1W Osram LEDs
Clear lens
1920 lumens measured output
Flood light pattern
Fully angle-adjustable bracket mounting
IP68 rated
Certified to ECE R10
Polycarbonate lens
Aluminium housing, black E-coat finish
SL-09047-1 is supplied with mating DT plug and cable
SL-09047-2 is for mating with customer’s own DT plug terminated harness
Compact 76 x 76mm square body design
Multi-voltage: 9-32Vdc operating range
24 x 1W Osram LEDs
Clear lens
1920 lumens measured output
Flood light pattern
Fully angle-adjustable bracket mounting
IP68 rated
Certified to ECE R10
Polycarbonate lens
Aluminium housing, black E-coat finish
SL-09047-1 is supplied with mating DT plug and cable
SL-09047-2 is for mating with customer’s own DT plug terminated harness
Additional Information
Part Numbers
SL-09047-1 24W LED work light with integral DT connector and mating DT plug & cable
SL-09047-2 24W LED work light with integral DT connector
For further information about this product please contact us
